Kenyon were approached to supply the Ghusal equipment for Wandsworth Mosque.

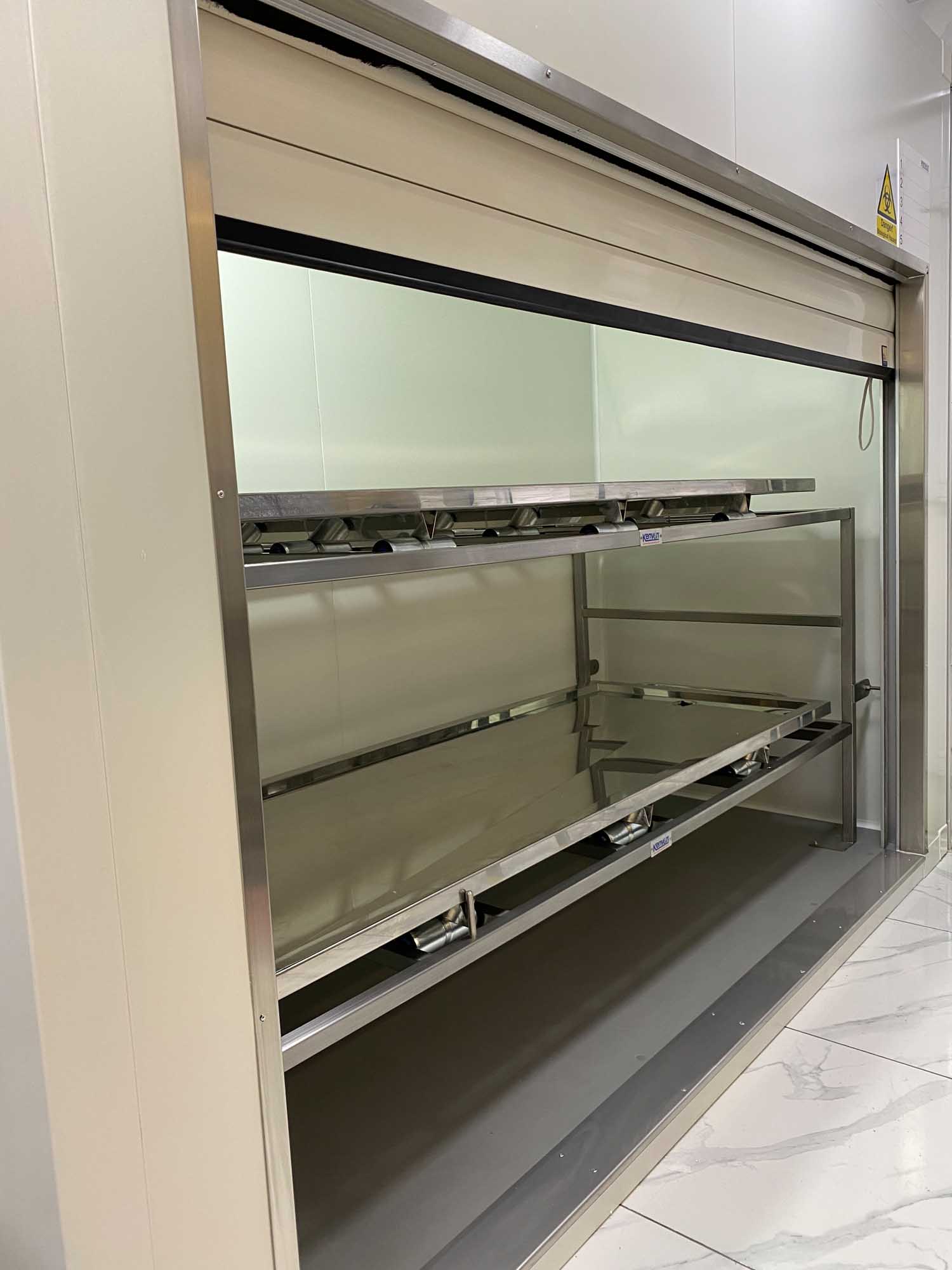

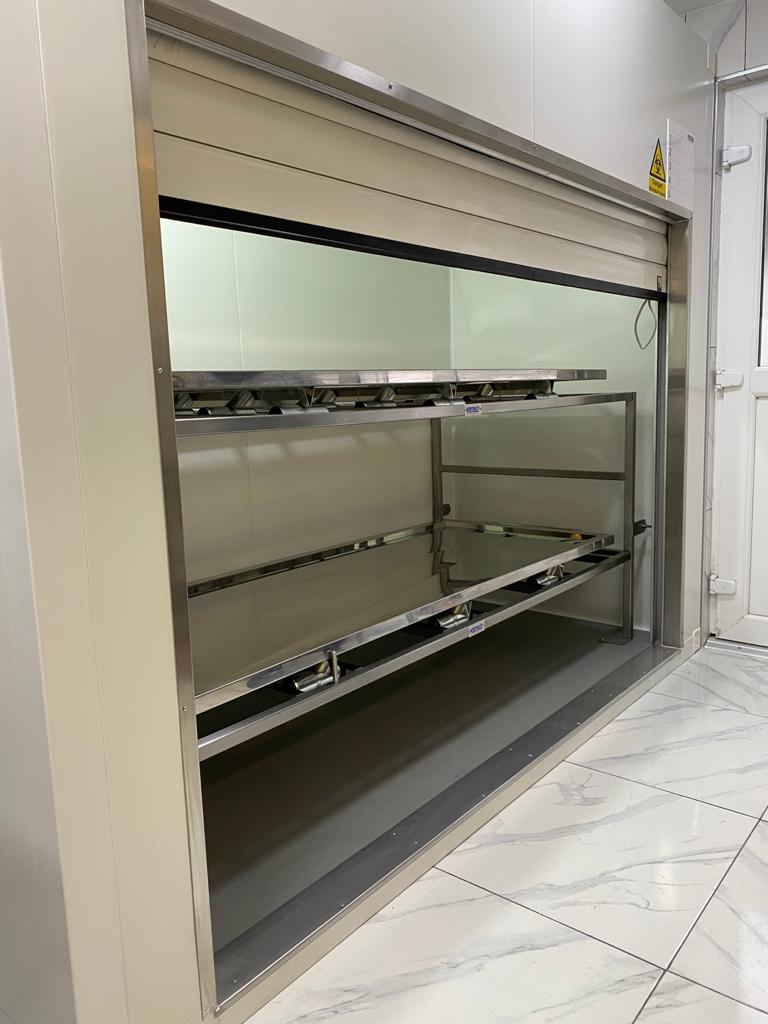

The Lateral Chamber utilised our Grande Coldroom model and with our unique profile system that every panel has to lock in to using “push and pull” cam locks. Using our patented system this creates a very energy efficient seal, and in turn costs the client considerably less to run in energy consumption. Something Kenyon strive to achieve by modifying the cold rooms time and time again. Taking a thermal imaging cameras in to a cold room will show you exactly what we mean by “thermal dynamics” and can demonstrate “heat leakage” issue, highlighting the cheaper alternatives being sold on the market.

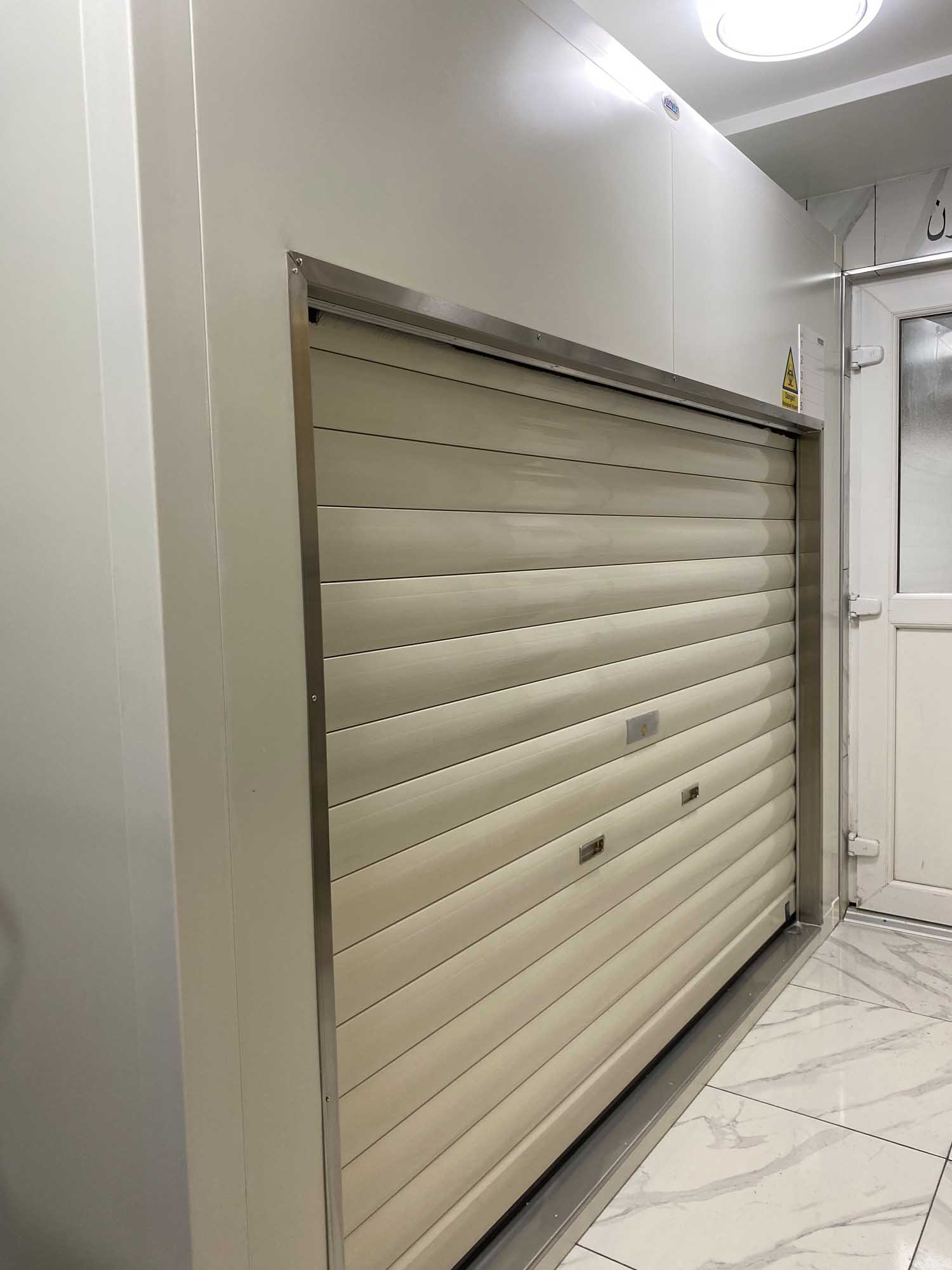

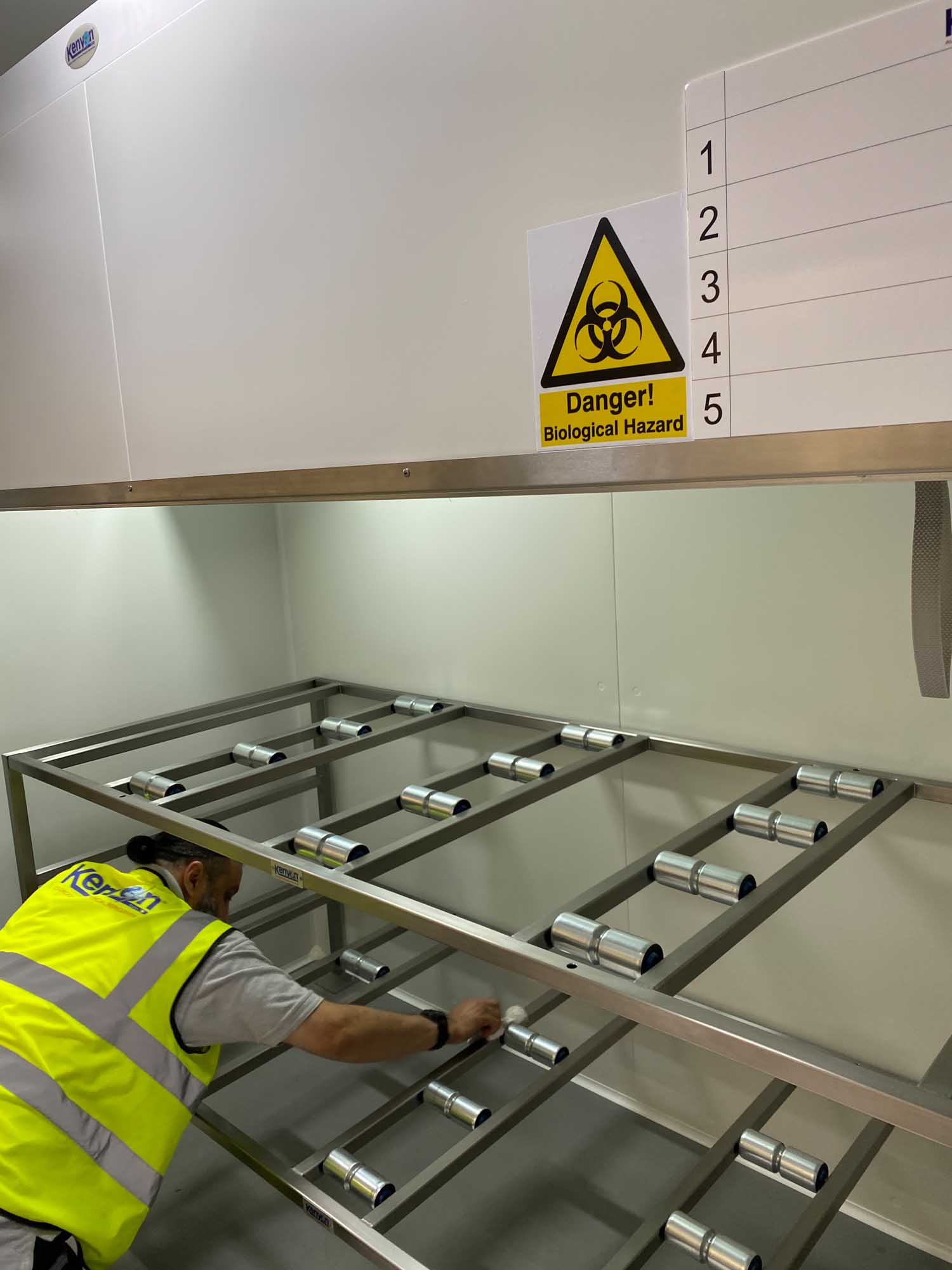

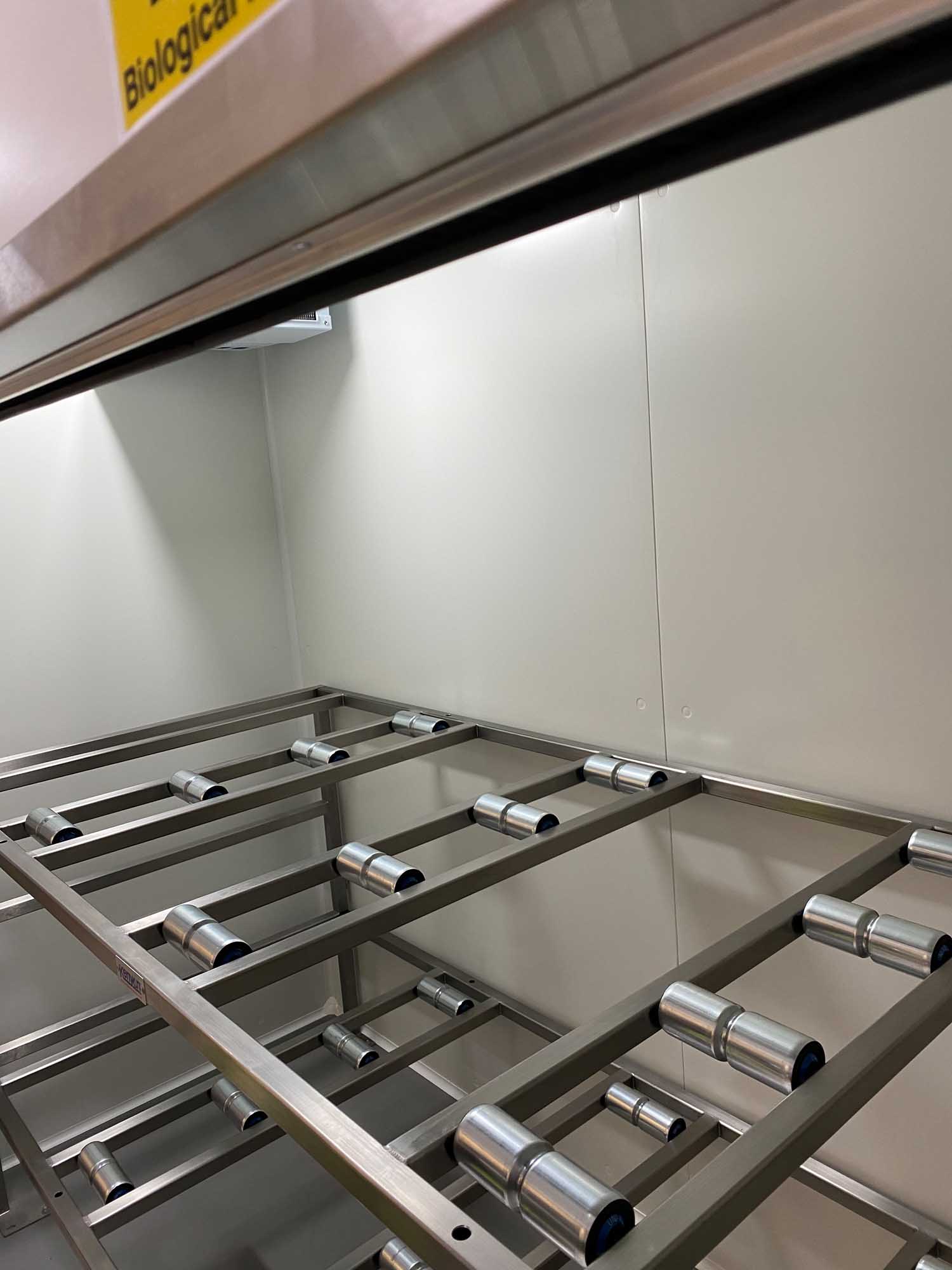

The Kenyon Lateral Chamber was fitted with an insulated roller shutter door, complete with rubber “sweeper gasket.” Interior furniture consisted of 316 Stainless Steel racking with stub rollers. The body trays were bright polished and 316 Stainless Steel complete with drain hole and plug.

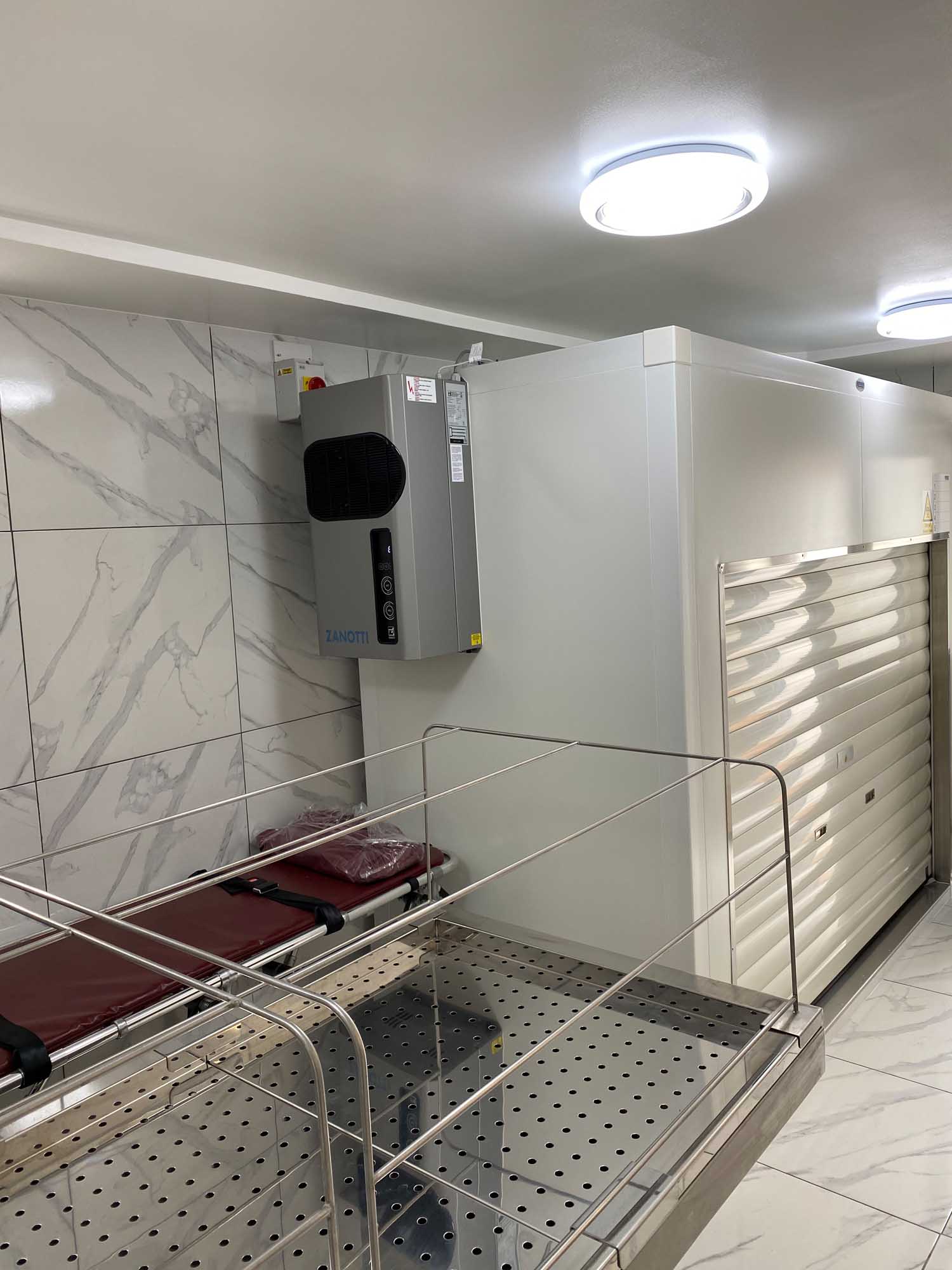

The Kenyon Ghusal Table was another unique build. Designed and manufactured as the client wanted it. The table was manufactured from high grade Medical Stainless Steel. The 3 removeable Body Trays were manufactured from high grade “Bright Polished Stainless Steel” then laser cut and punched with larger 12 mm holes for faster drain away of foul water to the sparge area below. The plenum under the Kenyon Ghusal Table houses all the water connections and supply services so they could not be seen, but easily reached via a removeable service panel if need be.
The table consists of 3 x 3.0 metre “Kenyon Washing Hoses” that come up from below the table and retract when not needed. The reason there are two hoses is so two people can do the Ghusal at the same time. These Ghusal Hoses are fed from a Stainless Steel Mixer Unit delivering on the button hot or cold water.
Hospital lever action taps were supplied as standard on the “Kenyon Ghusal Table” operated via elbow on 6 inch lever arms.
A “Kenyon Preparation Table” was also manufactured and supplied in high grade Medical Stainless Steel. Fully mobile and on 4 castors. This is used for the dressing of the deceased and applying Perfumes, and for the storage of towels on the under shelf below.
Kenyon also supplied their HET style “Touch Button Electric Trolley”. Electric being the chosen medium as that would make carrying out the removing and inserting of the Kenyon Trays much easier for everyone. This trolley is used for un-loading and loading the body chamber and for moving around the mortuary safe and secure.
A One Man Loading Stretcher was supplied to enable the Janaaza staff to collect the deceased safely from the collection point to the mortuary/Ghusal room. The stretcher has folding legs that each operate at the pull of two levers making it easier to insert in to a vehicle.
A solid Stainless Steel Janazza Trolley was also supplied. Fitted with 4 individually braked large rubber castors and 4 fold away handles. Bright Polished Stainless Steel being the clients choice. This trolley is used for the Janaaza prayer where the cofffin is placed on top of it. It folds away easily so it can be stored in a vehicle or in the Ghusal Room after use. A supplied cover protects the trolley when not in use.
